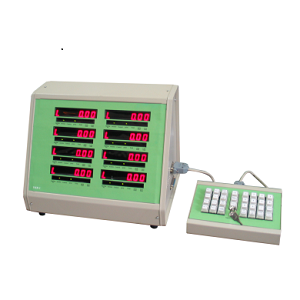

1.Brief introduction of control system for eight fuel dispenser

Control system for eight fuel dispensers is the one product that used in the gas station manages, it can communicate with eight nozzles at best, also can real-time monitor and control the nozzle.

2.Installation and connection of control system for eight fuel dispensers

In the back of control system for eight fuel dispensers has eight communication ports, it can link eight PCS single nozzle fuel dispensers or four PCS double-nozzle fuel dispensers.

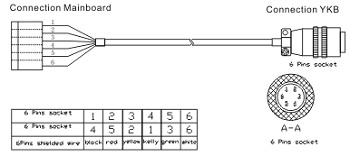

Control system for eight fuel dispensers connects with the fuel dispenser through one PCS communication wire. The communication wire has two ports, one port of 6 pins socket links to the 6 pins socket of the control system for eight fuel dispensers, another port RS232 9 pins socket links to the RE232 socket in the main board of fuel dispenser. Please see following picture:
